SMR 45E_SMR45E
作者：臺灣PMI導軌 發布時間：2023-07-27

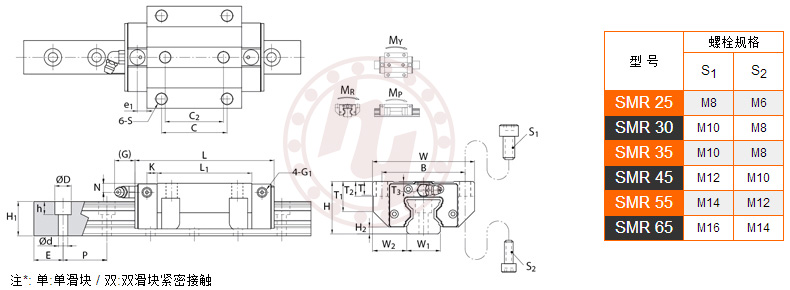

| 型號 | SMR 45E | ||
| 外形尺寸 | H | 60 | mm |
| W | 120 | mm | |
| L | 154.2 | mm | |
| W2 | 37.5 | mm | |
| H2 | 8 | mm | |
| 滑塊尺寸 | B | 100 | mm |
| C | 80 | mm | |
| C2 | 60 | mm | |
| S | M12 | mm | |
| L1 | 106.5 | mm | |
| T | 14.5 | mm | |
| T1 | 35.5 | mm | |
| T2 | 15 | mm | |
| T3 | 12.5 | mm | |
| N | 10 | mm | |
| G | 13.5 | mm | |
| K | 10 | mm | |
| e1 | 10 | mm | |
| G1 | M6 | mm | |
| 油嘴規格 | G-PT 1/8 | mm | |
| 導軌尺寸 | W1 | 45 | mm |
| H1 | 37 | mm | |
| P | 52.5 | mm | |
| E | 22.5 | mm | |
| D×h×d | 20×17×14 | mm | |
| 基本額定負荷 | 動負荷(C) | 89.3 | kN |
| 靜負荷(Co) | 184.1 | kN | |
| 容許靜力矩 | Mp單* | 3.27 | kN-m |
| Mp雙* | 18.48 | kN-m | |
| My單* | 3.27 | kN-m | |
| My雙* | 18.48 | kN-m | |
| Mr | 4.18 | kN-m | |
| 重量 | 滑塊 | 3.9 | kg |
| 導軌 | 11.2 | kg/m |
