SMR 55LS_SMR55LS
作者：臺灣PMI導軌 發布時間：2023-07-27

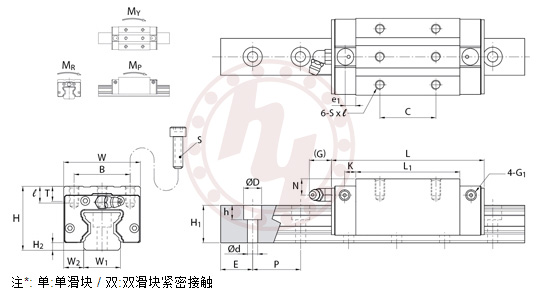

| 型號 | SMR 55LS | ||
| 外形尺寸 | H | 80 | mm |
| W | 100 | mm | |
| L | 235.4 | mm | |
| W2 | 23.5 | mm | |
| H2 | 10 | mm | |
| 滑塊尺寸 | B | 75 | mm |
| C | 95 | mm | |
| S | M12 | mm | |
| l | 19 | mm | |
| L1 | 179.5 | mm | |
| T | 18 | mm | |
| N | 21 | mm | |
| G | 13.5 | mm | |
| K | 12 | mm | |
| e1 | 7.95 | mm | |
| G1 | M6 | mm | |
| 油嘴規格 | G-PT 1/8 | mm | |
| 導軌尺寸 | W1 | 53 | mm |
| H1 | 43 | mm | |
| P | 60 | mm | |
| E | 30 | mm | |
| D×h×d | 23×20×16 | mm | |
| 基本額定負荷 | 動負荷(C) | 163.2 | kN |
| 靜負荷(Co) | 351 | kN | |
| 容許靜力矩 | Mp單* | 10.16 | kN-m |
| Mp雙* | 53.02 | kN-m | |
| My單* | 10.16 | kN-m | |
| My雙* | 53.02 | kN-m | |
| Mr | 9.52 | kN-m | |
| 重量 | 滑塊 | 7 | kg |
| 導軌 | 15.6 | kg/m |
